Wireless Rotating Photoelectric Sensor Ultra Low Power Sun Resistant Sensor 30m

Name: Wireless Rotating Photoelectric Sensor Ultra Low Power Sun Resistant Sensor 30m
Brand: JUTAI
Price: 1 USD

Wireless Rotating Photoelectric Sensor Ultra Low Power Sun Resistant Sensor 30m Manufactures

Rotation Angle : 180 Degree

Receiver Power Consumption : 30mA @ 12V DC

Size : 113*46.79*47.72mm

Output Contact : Fail-Safe, N/C and N/O, Potential Free Contact

Waterproof : IP66

Specified Operating Distance : 30m

Transmitter Battery Life : Minimum 2 Years

Receiver : 12 - 24V AC 12 - 30V DC

Brand Name : JUTAI

Model Number : IS-30R

Certification : CE, FCC

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay

Supply Ability : 1000 pieces per month

Delivery Time : 5 - 8 working days

Packaging Details : Cartoon

Contact Now

IS-30R External Rotation Wireless Infrared Gate Sensor

Product Overview

The IS-30R External Rotation Wireless Infrared Gate Sensor is an advanced safety solution designed to ensure secure and convenient access control for residential, commercial, and industrial gate systems. With its innovative external rotation feature and wireless operation, this sensor simplifies installation, saves on labor costs, and offers reliable performance in various weather conditions.

Key Features

Feature	Description
External Rotation, 180 Degrees	Effortlessly adjust for optimal alignment, ensuring simple installation and reducing labor costs.
Wireless and Battery-Operated Transmitter	Save time and money with a transmitter that operates wirelessly and runs on batteries.
30 Meters Operating Range	Perfect for a wide range of entrance gate applications, providing ample coverage.
Ant-Proof and Weather-Resistant Enclosure	Built to withstand environmental factors, ensuring reliable operation in various conditions.
Audible Feedback for Easy Setup	The transmitter offers audible feedback, simplifying setup procedures and providing battery-low indication.
Low Power Consumption	Enjoy enhanced efficiency with low power consumption across the entire system.
Compatibility with Intruder-Detection Alarms	Seamlessly integrate with intruder-detection alarms to bolster perimeter security measures.
Built-in Laser Beam Alignment System	Facilitates quick and easy installation with a built-in laser beam alignment system, ensuring precise positioning.

Why Choose IS-30R?

180 Degree External Rotation: Easy adjustment and convenient installation, especially in special project sites.
Low Power Consumption: Wireless transmitter requires only two AA batteries (not included) and operates reliably for up to two years.
Highly Cost-Effective: Delivers a cost-effective detection solution ensuring gate safety without compromising quality.
Compatibility: Compatible with gate operators from various brands and supply voltages ranging from 12V to 30V DC.
Long-Distance Performance: 30-meter operating range suitable for wide entrances and virtually any entrance gate application.

Technical Specifications

Parameter	Specification
Power Supply	12-24VAC, 12-30VDC
Transmitter	2 x AAA alkaline batteries (Supplied)
Receiver	12-24VAC, 12-30VDC
Rotation Angle	180 Degree
Receiver Power Consumption	30mA @ 12VDC
Transmitter Battery Life	Minimum 2 years
Battery Low Indication	Audible Beep
Specified Operating Distance	30m
Alignment	Automatic @ 10m (circular area - assumes parallel surface)
Output Contact	Fail-safe, N/C and N/O, potential free contact
Output Contact Rating	3A @ 30V DC Non-inductive
Operating Temperature	-20°C - +60°C
Operating Humidity	0 - 90% Non-condensing
Degree of Protection	IP66
Housing Material	PC (UV)
Size	113 x 46.79 x 47.72mm

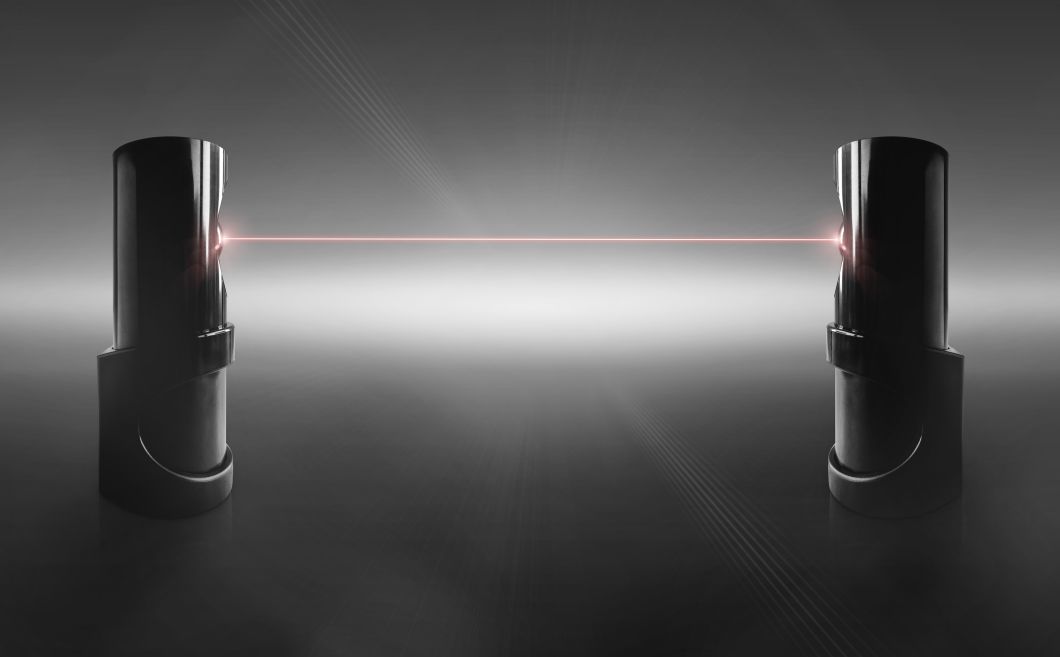

Product Images

Wireless Rotating Photoelectric Sensor Ultra Low Power Sun Resistant Sensor 30m

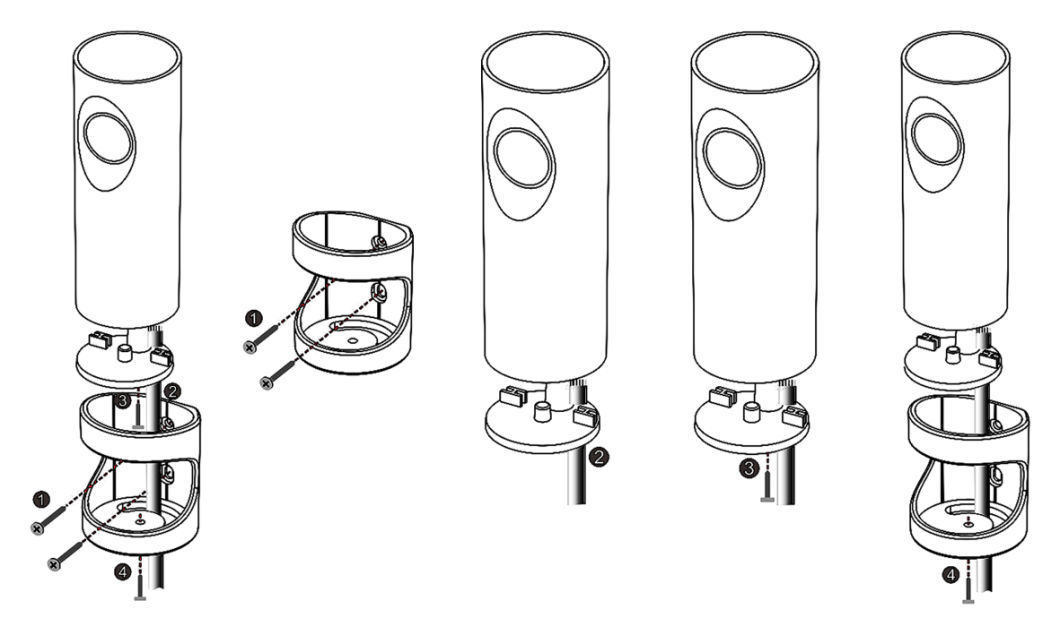

Installation Instructions

Connection Diagram
